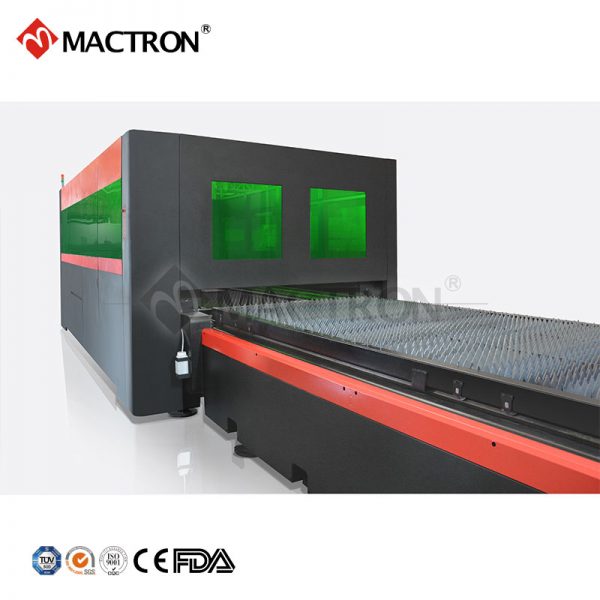

Fiber Metal Laser Cutting Machine
Be made of reinforced welding lathe bed
Be used in sheet metal processing, aviation, aerospace, electronics, etc
500W Laser Cutting Flat Bed Machine System
- Description
- Specification
- Contact us
Fiber Metal Laser Cutting Machine is made of reinforced welding lathe bed, after tempering treatment and vibration aging to eliminate stress and then under finish milling by large plan miller, to ensure the long-term stability of the machine and no deformation.
The Fiber Laser Cutting Flat Bed is used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, metro fittings, automobile, machinery, precision parts, ships, metallurgy equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal processing center and other manufacturing and processing industries.
Video of fiber metal laser cutting machine
The Large Fiber Laser Cutter uses internationally advanced laser source , it can output a high energy density laser beam and focus on the workpiece surface, so that the area is illuminated by the ultra-fine focus spot on the workpiece instantly melts and vaporizes. Through the machinery system moves the spot irradiation position to achieve automatic cutting . It is a high-tech equipment integrating with advanced fiber laser, numerical control and precision mechanical technology. When cutting metal plate such as stainless steel or carbon steel, it has the characteristics of high speed, high precision, high efficiency and high cost performance.
Spec. Sheet (1)
Model | Processing Area | Laser Power |
MT-2315FC | 2300*1500MM | 500W-1000W (Optional) |
MT-2516FC | 2500*1600MM | |
MT-3015FC | 3000*1500MM | |
F = Fiber, C = Cutting Customized Specification is Available |
Spec. Sheet (2)
Laser Type | Fiber Lasers |
Cutting Speed | Max. 60M/Min |
Positioning Accuracy | ±0.05MM |
Repeated Positioning Accuracy | 0.15-0.3MM |
Cooling Mode | Water Cooling and Protection System |
Drive System | Gantry gear rack double-drive |
Graphic Formats Supported | PLT, AI, DXF, CAD, CDR, DWG |
Power Source | AC 220/380V±10%, 50/60Hz |
Gross Power | < 4500W |
