Mould/Copper Tube Adjustable Laser Beam Welding Machine With Foot Switch

Mould/Copper Tube Adjustable Laser Beam Welding Machine With Foot Switch

Laser welding machine is one of the most common laser processing equipments. The heat affected zone, welding joints, welding efficiency are important indicators of welding technology.

  • Description
  • Specifications

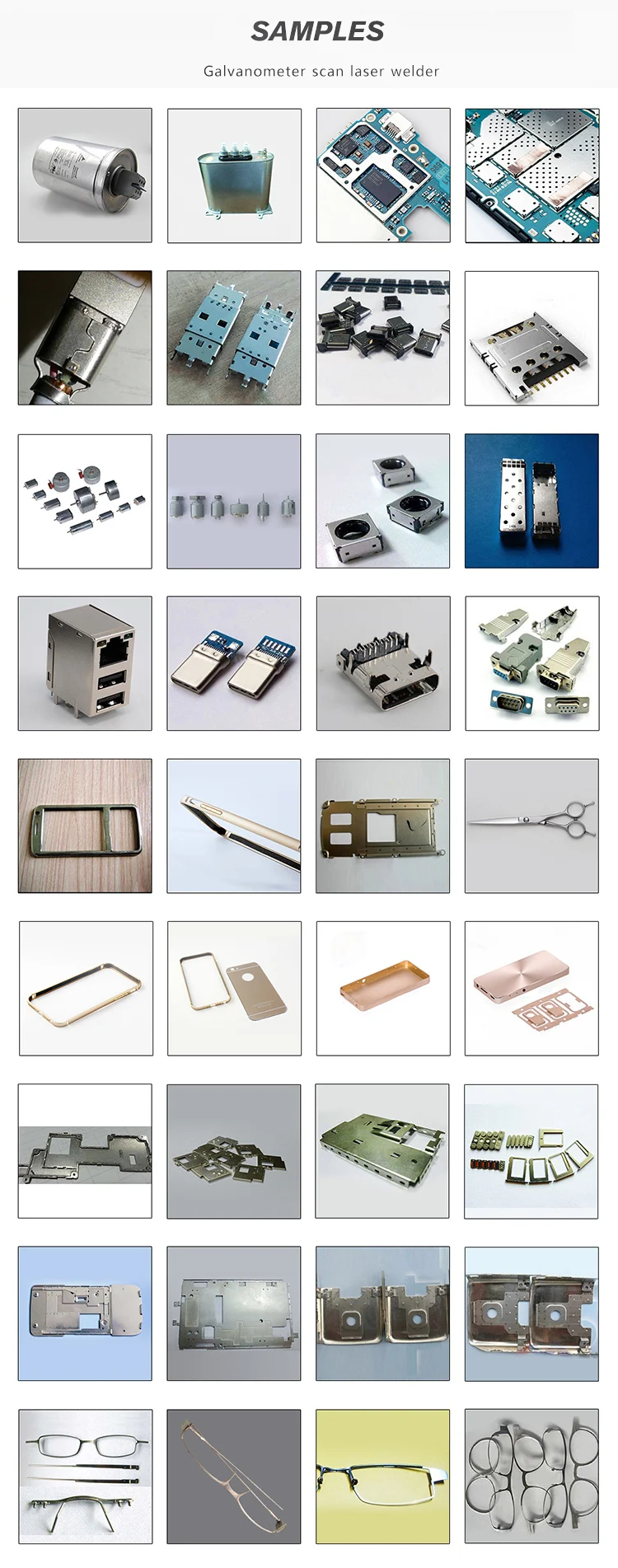

  • sample
  • Send Message



Laser welding machine is one of the most common laser processing equipments. The heat affected zone, welding joints, welding efficiency are important indicators of welding technology.

Galvanometer scanning laser spot welding machine is the introduction of foreign advanced technology, the key components used in the production of high-quality imported parts, welding machine, the use of the scanning mirror of the dynamic welding process, and the use of scanning lenses instead of moving parts or welding mirror Group moving the way, so that the lens in the scanning lens laser beam quickly switch between the solder joints, the greater the distance between the solder joints, the more the number of solder joints on the workpiece, the more obvious advantages. In the single-point welding due to greatly reduce the idle time positioning time, production efficiency than ordinary XY table laser welding to improve 4-10 times, galvanometer and laser are directly controlled by the software to provide based on Windows XP platform Of the special laser welding software. Welding points or graphics can be in its special software directly enter, edit, but also by AutoCAD, CorelDRAW and other software editing, can also import DWG or PLT file. The machine is stable in quality, easy to operate and easy to maintain.



Features:

1, The use of high-speed scanning galvanometer for laser positioning, the speed of up to 7000mm / s, greatly reducing the welding time between the empty time, which greatly improve production efficiency;

2, Digital galvanometer interface, anti-interference ability, better stability;

3, All Chinese special control components, powerful, easy to operate, compatible with a variety of format files;

4, High-power cooling system to meet the continuous production of mass production.

5, Processing speed, thermal deformation is minimal, does not affect the product within the electronic components or chemical composition of the performance;

6, Can be equipped with different welding range of field mirror and welding power;

7, With the corresponding supporting institutions to achieve online production.



ModelMT-W200YGMT-W300YGMT-W400YG
Laser Power200W300W400W
Laser TypeYAG Laser Source
Wavelength1064nm
Max. Pulse Energy90 J - 150 J
Max. Welding Thickness0.1-2.0mm
Gross Power鈮13KW
Voltage220V卤10% / 50Hz /30A380V卤10% / 50Hz / 40A
Pulse Width0.3-20ms
Frequency1-100Hz
Spot Adjustable Range0.2-2mm
PositioningRed Indicator
Repeatability卤0.01mm
Control SystemPLC or PC锛圕NC2000 锛
Working Table (XYZ)200mm脳200mm脳200mm - 500x500x200mm (Optional)
