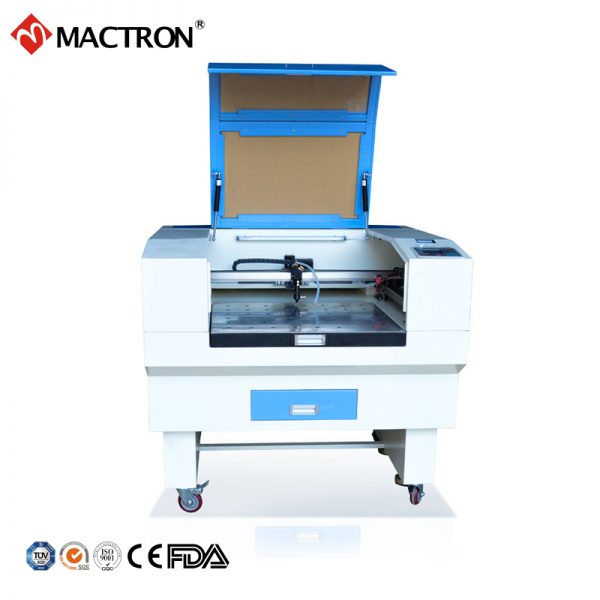

Mini Co2 Laser Cutting Machine
Uses top DSP technology
Large size visual identity system
World-leading CCD automatic pickup positioning figure identification system
- Description
- Specification
- Send Message
In order to meet the demands of irregular and type processing, the MT-6040 series uses top DSP technology and the world-leading CCD automatic pickup positioning figure identification system and large size visual identity system.
The system is fit for automatic positioning cutting and large-area cutting. The working size is 400*600MM. It can be widely applied for label cutting, woven label cutting, computerized embroidery label cutting, large digital print positioning cutting as well as cutting on irregular labels, plastics, cloth, leather, wool fabric and other nonmetal materials.
Mini co2 laser cutting machine MT-6040 applicable materials:
The bamboo piece, double-color planks, boulder, horns, leather, crystal, wood, organic plastic, paper, film, canvas, acrylic, plastic.
Mini co2 laser cutting machine MT-6040 applicable industry:
Co2 Laser Cutter and Engraver mainly used for the engraving and cutting on acrylic, wood, variety of plastic, Fabrics (silk fabrics, cotton fabrics, decorative fabrics, polyester fabrics, synthetic fabrics,), leather (leather, artificial leather, decorative leather, packaging leather, soft-leather), cardboard and other supplies, and all kinds of non-metal material.
Model | MT-6040 | MT-9060 | MT-1060 | MT-1080 |
Work Area (cm) | 60 × 40 | 90 × 60 | 100 × 60 | 100 × 80 |
Laser Generator | Water cooled Co2 glass sealed laser tube | |||
Laser Power | 60W/70W/80W/100W/130W/150W | |||
Drive Motors | Micro stepping stepper motor system | |||
Control System | 64 Bit DSP | |||
PC Interface | USB 2.0 Port, USB Disk | |||
Cutting Speed | 0-36000mm/min | |||
Engraving Speed | 0-64000mm/min | |||
Resolution Ratio | <0.025mm | |||
Power Supply | AC110V/220V-240V ± 10%, 50/60HZ | |||
Location Precision | ±0.015mm | |||
Operating Temperature | 0℃-40℃ | |||
Graphics Format supported | HPGL(PLT), JPEG, DST,AI, CAD, DXF, DWG, CDR | |||
Red Pointer | Optional | |||
Dual Laser Head | Optional | Optional | Optional | Optional |
Accessories | Water cooling unit, Air Pump, Exhaust Blower Unit | |||
Warranty | 12 Months | |||
Dimension (cm) | 110×98×120 | 148×118×120 | 158×118×120 | 158×138×120 |
Weight (kg) | 200 | 260 | 310 | 370 |
