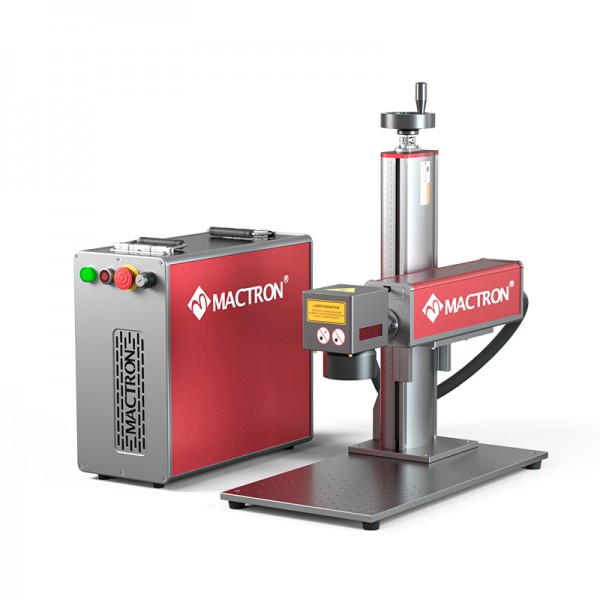

Portable fiber laser marking machine
Portable fiber laser marking machine widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on.
- Description
- Specifications
- Samples
- Contact us
Video of the聽portable fiber laser marking machine
Detailed description of聽 portable fiber laser marking machine
Portable fiber laser marking machine is especially outstanding in the aspect of portability. It is endowed with the features of small volume and easily making on the surface of big volume and heavy objects.Portable metal engraving machine adopts advanced digital high speed scan galvanometer and module design, that can separate laser generator and lifter.
This kind of machines can satisfy marking applications锛孲uch as food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, accessories, cosmetics, mobile telephone shells, kitchen & bathroom hardwares, shells of watches, medical apparatus and instruments, tools鈥 fittings, electronics and other industries, auto spare parts and other industries.
Portable fiber laser marking machine has the advantages of low materials consumption, non-toxic, and pollution-free.
We also have other high-quality laser marking machines, you can click the link to view details
1銆Portable metal engraving machine
2銆Portable Fiber Laser Marking Machine with Autofocus System
3銆Fiber Laser Marking Machine for Sale
4銆Portable laser marking machine
5銆Handheld Fiber Laser Marking Machine
If you are interested in the portable metal engraving machine, please send an email to 鈥[email protected]鈥, or 鈥leave a message鈥漮n our website for more details.
Model | MT-FP10 | MT-FP20 | MT-FP30 | MT-FP50 |
Laser Power | 10W | 20W | 30W | 50W |
Laser Type | Fiber Lasers | |||
Wavelength | 1064nm | |||
F = Fiber, 聽Customized Specification is Available | ||||
Processing Area | 70*70MM,110*110MM,175*175MM, 200*200MM, 300*300MM (Optional) | |||
Frequency Range | 20-200Khz | |||
Beam Quality | <1.6M2 | |||
Laser Source Lifetime | 鈮100000h | |||
Marking Speed | 鈮8000MM/S | |||
Marking Depth | 鈮2MM | |||
Repetition Precision | 卤0.01MM | |||
Min. Line Width | 0.03MM | |||
Min. Character | 聽0.2MM | |||
Cooling Mode | Air Cooling | |||
Lifting Height | 100~500MM (700MM) | |||
Graphic Formats Supported | PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG | |||
Power Source | AC 110/220V卤10%, 50/60Hz | |||
Gross Power | < 500W | |||
Work Environment | Temp: 10~40 鈩冿紝Humidity : 5 ~85 %, Clean, Less Dust |
Applicable Material
Suitable to all kinds of metal and partial nonmetallic material, High hardness alloy, oxide, electroplating, coating, ABS, epoxy resin, oil film, engineering plastics, etc.
Applicable Industry
Widely applied in electronic component, the communication, the spare parts of automobiles and motorcycles, instrument and meter, aerospace, war products, hardware and machinery, measuring and cutting tools, sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on.
