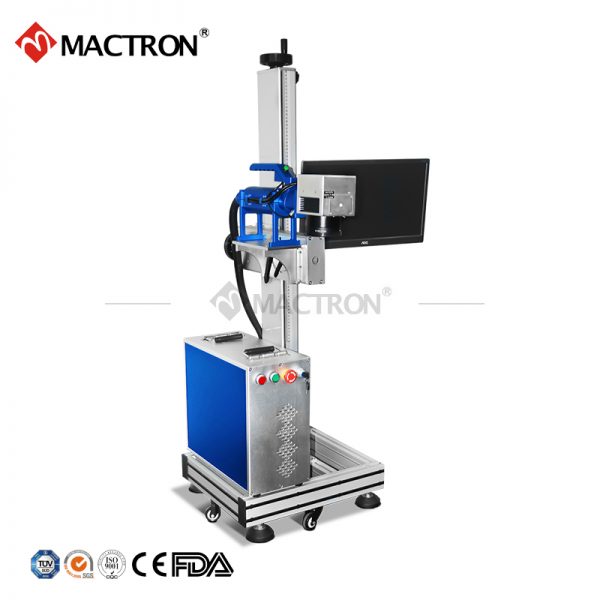

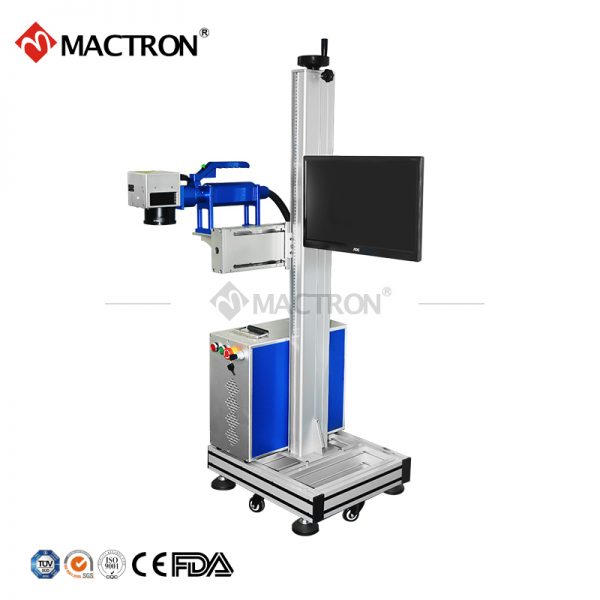

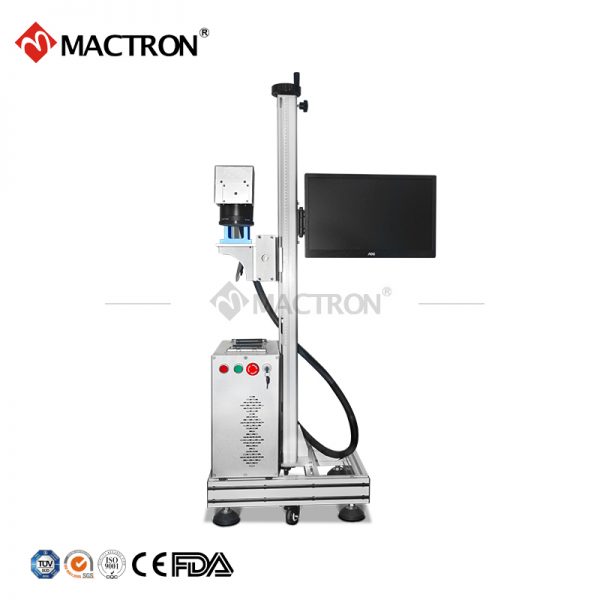

Hand-held flying laser marker
Hand-held flying laser marker is more outstanding in the aspects of low material consumption, pollution-free, no noise, energy saving .
- Description
- Specifications
- Samples
- Contact us
MT-OL series laser printer is a kind of special flying laser printer for automatic production line.Compared to traditional inkjet printer,Hand-held flying laser marker is more outstanding in the aspects of low material consumption, pollution-free, no noise, energy saving and environmental protection. Additionally, the machine has advantages of simple operation, stable performance, long usage lifetime, low maintenance cost etc.
Optional Accessories:
Model | MT-OL-U | MT-OL-G | MT-OL-C | MT-OL-F |
Laser Power | UV Laser 3-15W | Green Laser 3-50w | Co2 Laser 10-80W | Fiber Laser 20-100W |
Laser Type | CO2 Lasers, Fiber Lasers, UV Lasers, Green Laser | |||
Wavelength | 10.6um/9.3um/1064nm/355nm/532nm | |||
Processing Area | 50*50MM, 70*70MM, 110*110MM (Optional) | |||
OL = Online, U = UV Lasers, G = Green Lasers, C = Co2 Lasers, F = Fiber Laser Customized Specification is Available | ||||
Frequency Range | 20-80Khz | |||
Beam Quality | <2M2 | |||
Laser Source Lifetime | ≤100000h | |||
Marking Speed | ≤15000MM/S | |||
Marking Depth | ≤0.1MM | |||
Repetition Precision | ±0.01MM | |||
Min. Line Width | 0.02MM | |||
Min. Character | 0.5MM | |||
Cooling Mode | Air,Water Cooling | |||
Graphic Formats Supported | PLT, DST, AI, DXF, BMP, JPG, CAD, CDR, DWG | |||
Power Source | AC 110/220V±10%, 50/60Hz | |||
Work Environment | Temp: 10~40℃,Humidity : 5 ~80 %, Clean, Less Dust | |||
Applicable Material:
Equipped with different laser sources and laser printing system, the online laser marking machine can be widely used for food and beverage, pharmaceutical, tobacco, leather, packaging, building materials, lighting, jewelry, cosmetics, mobile phone back cover, mobile phone case, kitchen & bathroom hardware, clock and watch back cover, medical apparatus and instruments,tools accessories, electronic component,auto parts,pipe,cable and other industries.
