3Axis Dynamic RF Co2 Laser Marking Machine

Adopts big power metal RF laser tube imported from USA

Equipped with hi-tech dynamic focusing galvo scanner

High-precision and high-speed laser marking & laser engraving

  • Description
  • Specification
  • Application and Software
  • Send Inquiry

Product Description

3 Axis Co2 Dynamic Laser Marking Machine General Description:

Co2 3 Axis Dynamic Focusing Laser Marking Engraving Machine is equipped with RF laser tube imported from America. The RF Co2 Laser can work in large power with high frequency and long operating life. It has 100W and 150W two power options.

Here Below Let’s take a look at a video of 3Axis Co2 Laser Marking Engraving Machine Laser Processing on Demin Jeans.

And Let’s look at a Video of 3 Axis Co2 Laser Machine Marking Carving on Leather.

Equipped with hi-tech dynamic focusing scanning mirror and control card, the 3 Axis Dynamic Laser Machine system is excellent in the aspects of algorithm optimization, high speed of marking and cutting, and other powerful functions. It is specially designed for the laser scanning with a tiny light spot, large working range, and high flexibility.

Furthermore, this 3 Axis Co2 laser marking equipment is characterized by high strength in use, compact construction, dust-proof, convenient and accurate installation, strong anti-jamming ability, etc., which can ensure the stability of the system under long-hours working conditions.

CO2 3 Axis Dynamic Laser Marking Machine Feature:

◆Fully enclosed laser optic system doesn’t need adjustment and is maintenance-free.

◆Original imported metal RF laser enjoys the high power and good beam quality, stable power output and long lifetime(above 20k hours).

3 axes laser scanning system has a compact structure, rugged dust-proof, precise, anti-interference. The system is designed to resolve galvanometer motor and drive plate heat issues, to ensure the stability of the system.

◆High-precision and high-speed laser marking/engraving/cutting, efficiency is 20% higher than other similar models.

◆The use of RF laser water-cooling method and dual beam expander lens allows the machine to have stable and extensive performance.

◆USB interface bus has been adopted for the control card, which supports offline operation, a stepper motor with X, Y, Z and R axis (X, Y and Z axis linked.), support start-up and stopping marking by external control.

Rotary worktable system is optional, thus, accomplish laser marking & engraving on the cambered & curved surface.

◆Strong graphics drawing and editing functions enable direct laser marking of color graphic or laser marking after color converts from RGB to grey scale.

◆Support formula correction and Newton interpolation correction.

CO2 3 Axis Dynamic Laser Marking Machine Full Pictures:

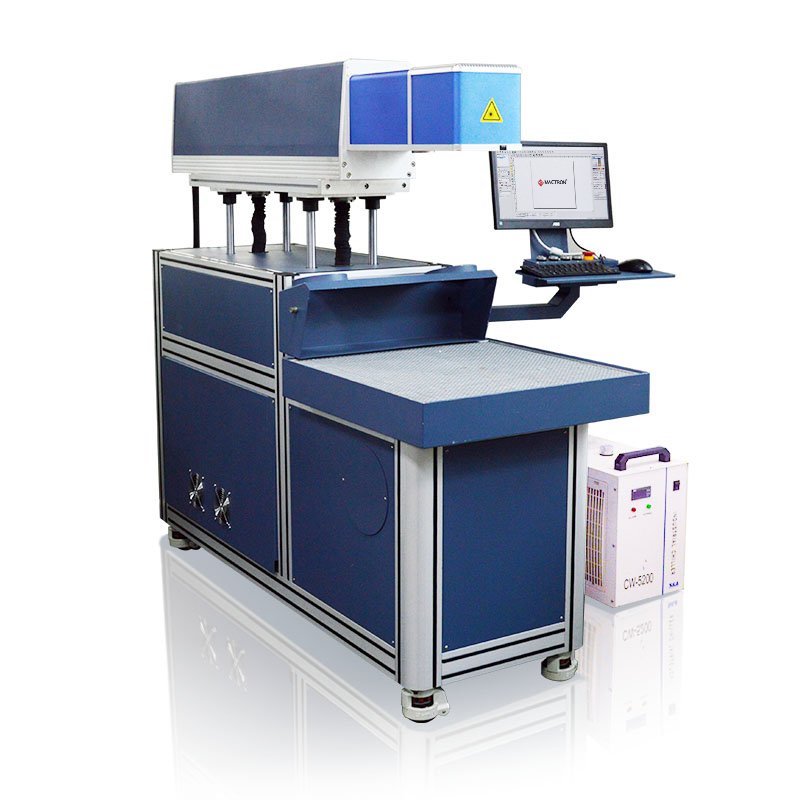

Co2 3 Axis Laser Marking Engraving Machine

                                          (Co2 3 Axis Laser Marking Engraving Machine Sloping Side View)

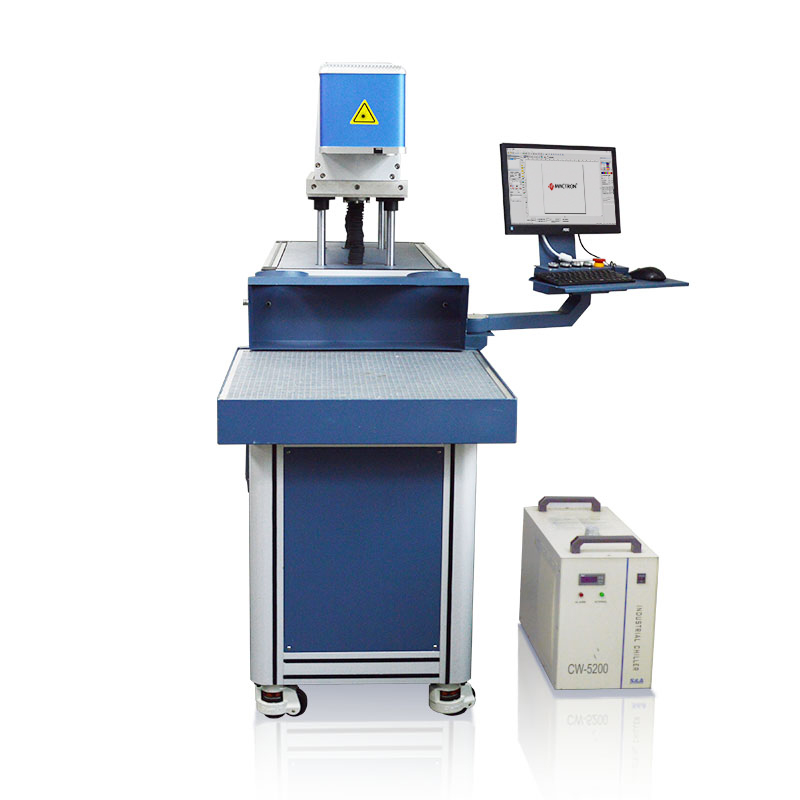

Co2 3 Axis Laser Marking Engraving Machine System

                                    (Co2 3 Axis Laser Marking Engraving Machine System Front View)

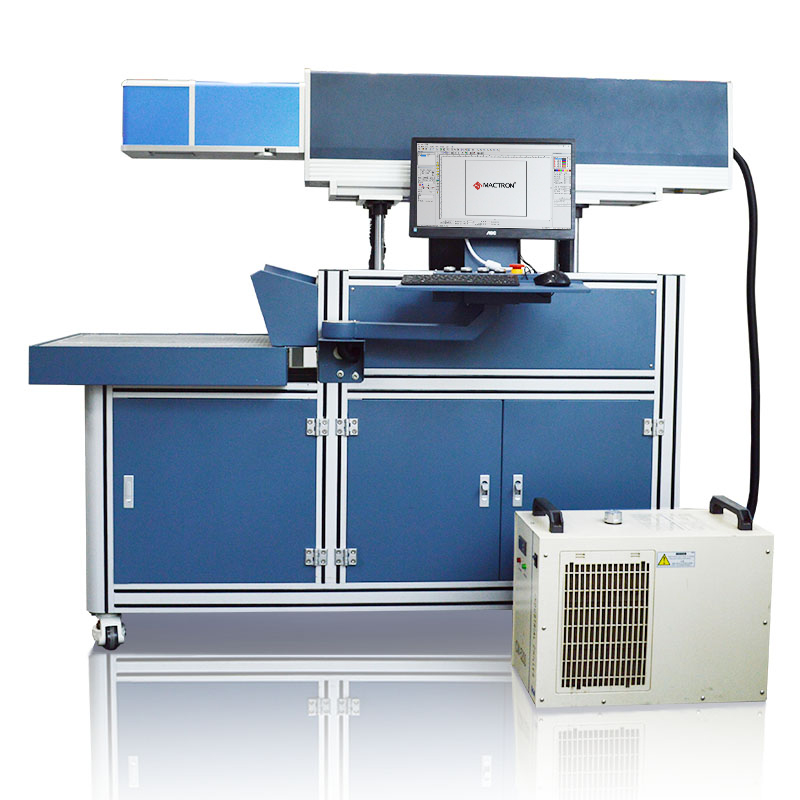

Co2 3 Axis Laser Marking Engraving Machine Equipment

                                      (Co2 3 Axis Laser Marking Engraving Machine Equipment Side View)

CO2 3 Axis Dynamic Laser Marking Engraving Machine Parts Pictures:

Galvo Scanner of 3 Axis Co2 Laser Marking System

Galvo Scanner of 3 Axis Co2 Laser Marking Machine

With Advance High Tech Dynamic Focusing Galvo Scanner and Control Card.


F-theta Lens of 3 Axis Co2 Laser Marking System

F-theta Lens of 3 Axis Co2 Laser Marking Machine

The default size of F-theta lens is 600 x 600 mm, and the size can be custom, for examplem 300 x 300 mm, 400 x 400mm, 500 x500 mm, 1000 x 1000 mm, 1200 x 1200 mm.


3 Axis Adjustment System of Co2 Laser Marker

3 Axis Adjustment System of 3 Axis Co2 Laser Marking Machine

The Default Size is 600 x 600 mm, and the size can be custom, for example: 400 x 400 mm.


RF Metal Laser Tube of 3 Axis Co2 Laser Marking System

RF Metal Laser Tube of 3 Axis Co2 Laser Marking Machine

The RF Metal Laser Tube imported from USA, with Super Long life 20,000~30,000 hours.


Super Big Work Platform of 3 Axis Laser Marker

Super Big Work Platform of 3 Axis Laser Marking System

The Working platform is super big, the size is 660 x 660 mm.


Cumputer System of 3Axia Co2 Laser Marking Engraving Machine

Cumputer System of 3Axia Co2 Laser Marking Engraving Machine

The computer system including industry computer, monitor, keyboard, mouse; the operation panel is also near the monitor that convenient for user's to operate the laser system.


CO2 3 Axis Dynamic Laser Marking Engraving Machine Pre-sale and After-sale Services:

Pre-sale Service
1. Welcome to send sample material to us for testing laser marking engraving for you.
2. We offer pictures, videos and other relevant documents for you to know more about the machine.
3. We are online and would respond fast to answer all your questions.
4. If you have chance visiting China, you are warmly welcome to visit our factory.

After-sale Service
1. The whole Co2 Axis laser marking engraving machine‘s warranty is 1 year. Any parts have a quality problem during the warranty period, We will send you a new replacement for free. And Customer affords the replacement shipping cost.
2. The training video, detailed manual, and catalog sent with the machine. The customer could study the operation of the machine by watching the clear training video. And the use of the laser marking engraving machine will be very easy.
3. If there is a technical problem or new inquiry, Mactron has a fast response to service support by online or email even if need by the phone call.
4. Professional technical support and after sales following up. A free software update.

CO2 3 Axis Dynamic Laser Marking Engraving Machine FAQ:

1) What are the primary products of your company?
Our primary products include laser marking machine, laser engraving machine, laser cutting machine, laser welding machine, and laser spare parts.
2) Where is your laser equipment applied to?
Our Fiber Laser Marking Machine is suitable for all kind of metal, industrial plastic, electroplates, metal-coated materials, rubbers, ceramics and so on.
3) What are the advantages of your laser equipment?
Our laser equipment has several advantages.
High quality and precision are the featured properties of our laser marking machine. Our laser marking machine employs the domestic leading “Smart Engraving” technology, which could clearly engrave 2mm characters and 1mm letters on the materials.
4) How to do control the quality when you produce laser equipment?
We introduce international advanced production technology, and strictly implement a series of measures of quality and cost control to ensure the quality of laser marking machine. In addition, all raw materials are strictly inspected in accordance with international standards before they are put into production.
5) Which countries are your laser machinery sold to?
Our laser machines sell all over the world, such as United States, Mexico, Brazil, Australia, Singapore, Saudi Arabia, Turkey, India, Italy, UK, Germany, Poland, Spain, Romania and many other countries.

CO2 3 Axis Dynamic Laser Marking Engraving Machine Package:

Main Laser Machine Unit x 1

CD of Operation Software x 1

Computer System(including monitor) x 1

Wood Safety Package Box x 1

Rotary Attachment is Optional and Available

Red Light Positioning Function for Co2 Laser Machine is Optional and Available

Vacuum device is Optional and Available

Warranty: 1 Year.

Model

MT-RF100D/RF150D

Marking Scope (cm)

Standard 50X50

Work Area (cm)

40x40/60x60(Adjustable)

Laser Generator

USA Imported RF Metal Laser Tube

Laser Power

0-100W (Continuously Adjustable)

0-150W (Continuously Adjustable)

Wavelength

10640nm

Min Character

0.4mm

Marking Speed

≤7000mm/s

Marking Depth

≤5mm (Depends on materials)

Repeat Precision

±0.02mm

Cooling Style

Water Cooling

Power Supply

220V(±10%)/50Hz/30A

Gross Power

<3.5KW

Operating Temperature

10℃-45℃

Warranty

12 Months

Dimension (cm)

180x50x160 (Optic System)

56 x84 x83 (Control System)

50 x60 x81 (Cooling System)

Gross Weight (kg)

300

1. Applicable Materials:

MT-RF Series Co2 Laser Marking Machine suitable for almost all non-metal materials, including leather, rubber, wood board, bamboo products, organic glass, ceramic tile, plastics, marble, jade, crystal, cloth, etc.

2. Applicable Industry:

Co2 3 Axis Laser Marking Machine is used to arts & crafts, leather products, glasses, clothing, bamboo and wood products industry, package, advertising decoration and architectural model.
